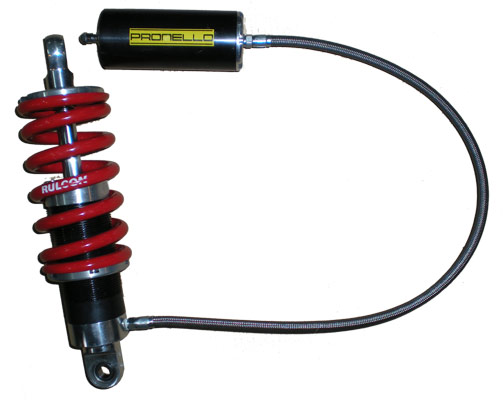

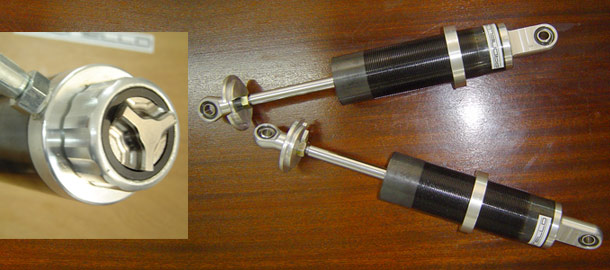

Mono tube

Rods

First quality tempered chromed an grinded hollow or solid rods. Dimension: Ø 5/8” or Ø16mm.

Cylinder

Threaded exterior Ø2.13”, with adjustable spring support. Calibrated interior Ø1.97”, pressure tube. Supports 2.25” & 2.5” springs.

Piston

Dual regulation by shims (bump and rebound) Ø2” piston. With a high preload capacity that allows digressive graphics if needed. Shims: We manufacture them from special Swedish steel, their final diameters are obtained by a grind process.
