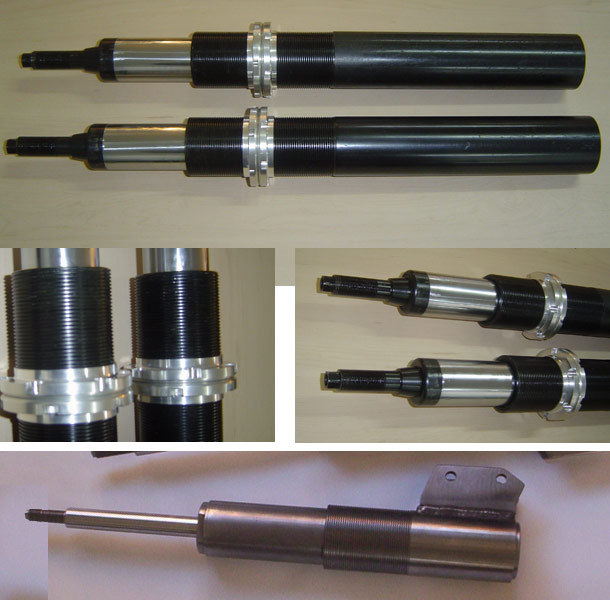

Inverted McPherson Struts

Rods

First quality tempered chromed an grinded hollow or solid rods. Dimension: Ø 5/8” or Ø16mm.

Cylinder

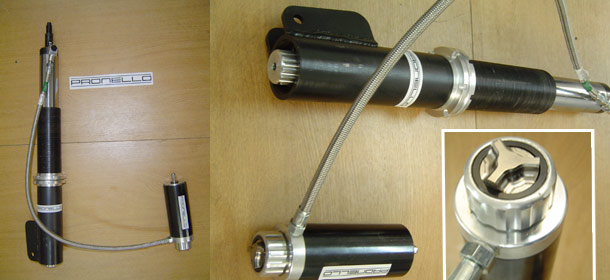

The inverted strut works with a mono tube shock. The cylinder of this mono tube shock is chromed & grinded by its exterior face in order to properly work as the strut shaft with 2 separated DU bushes. Available cylinders diameters: Ø1.75” (track cars) & Ø2” (rally cars).

Piston

Dual regulation by shims (bump and rebound); with high preload capacity which allows digressive graphics if needed. The piston is Ø1.75” or Ø2” depending on the strut model.
